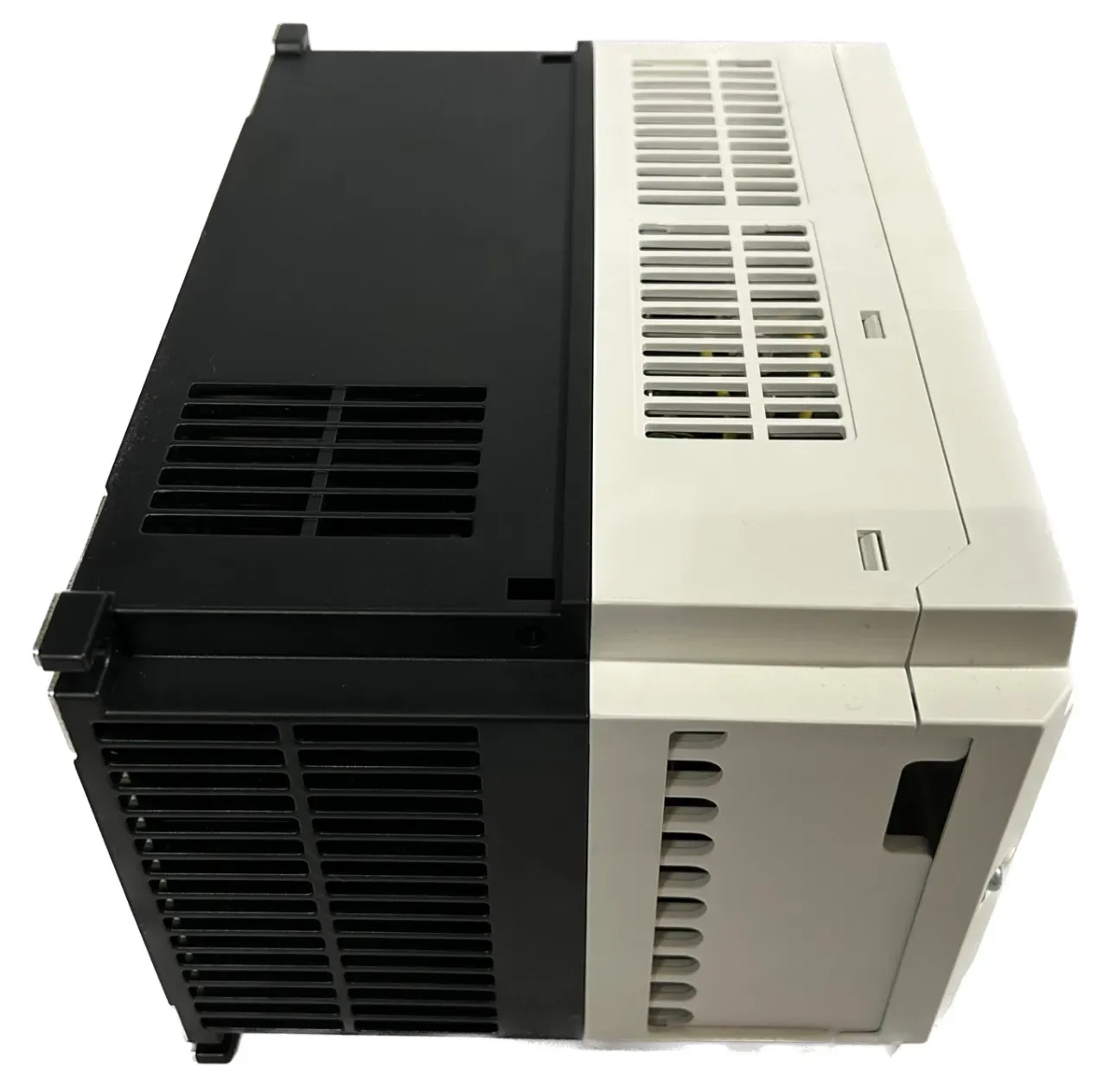

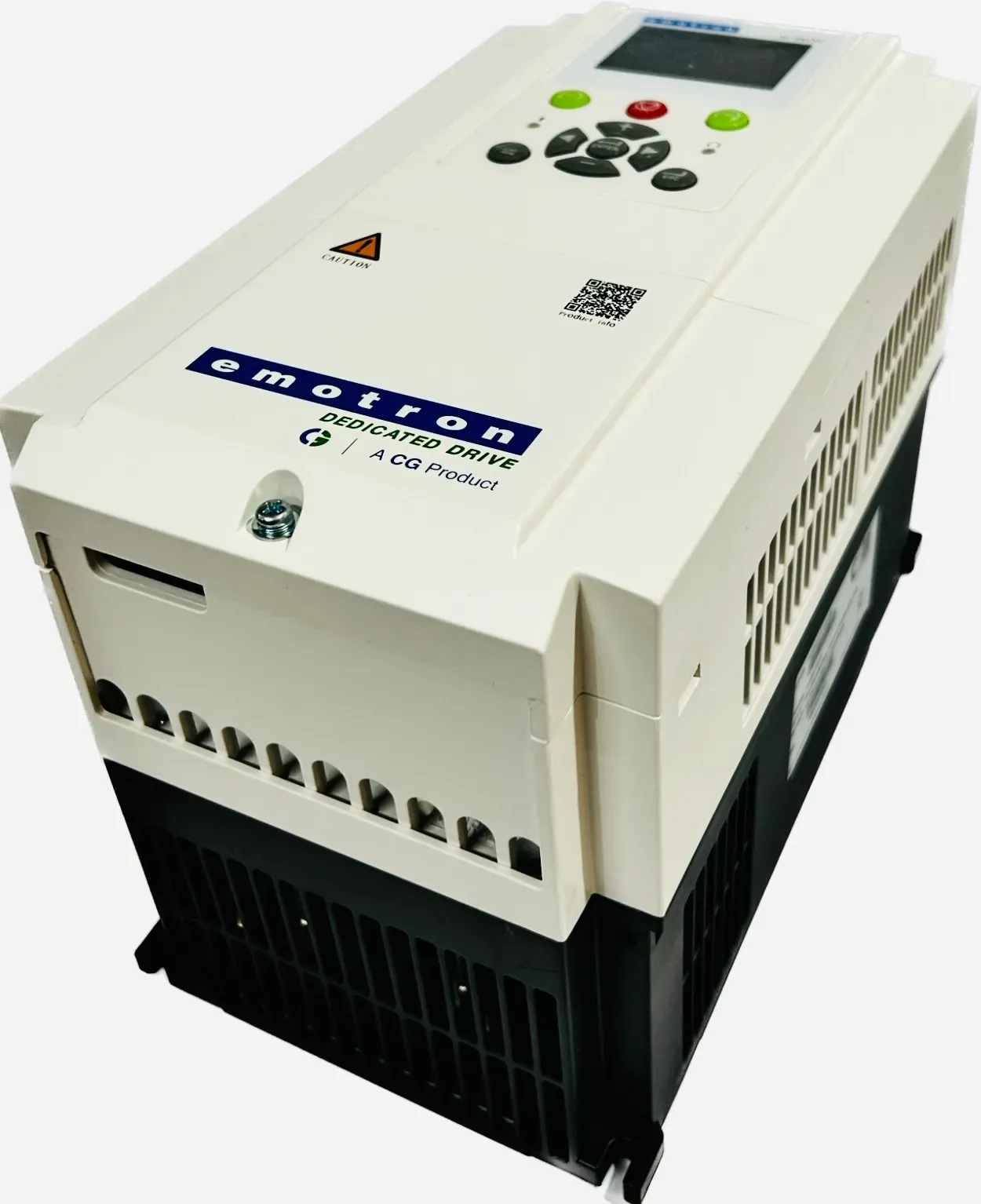

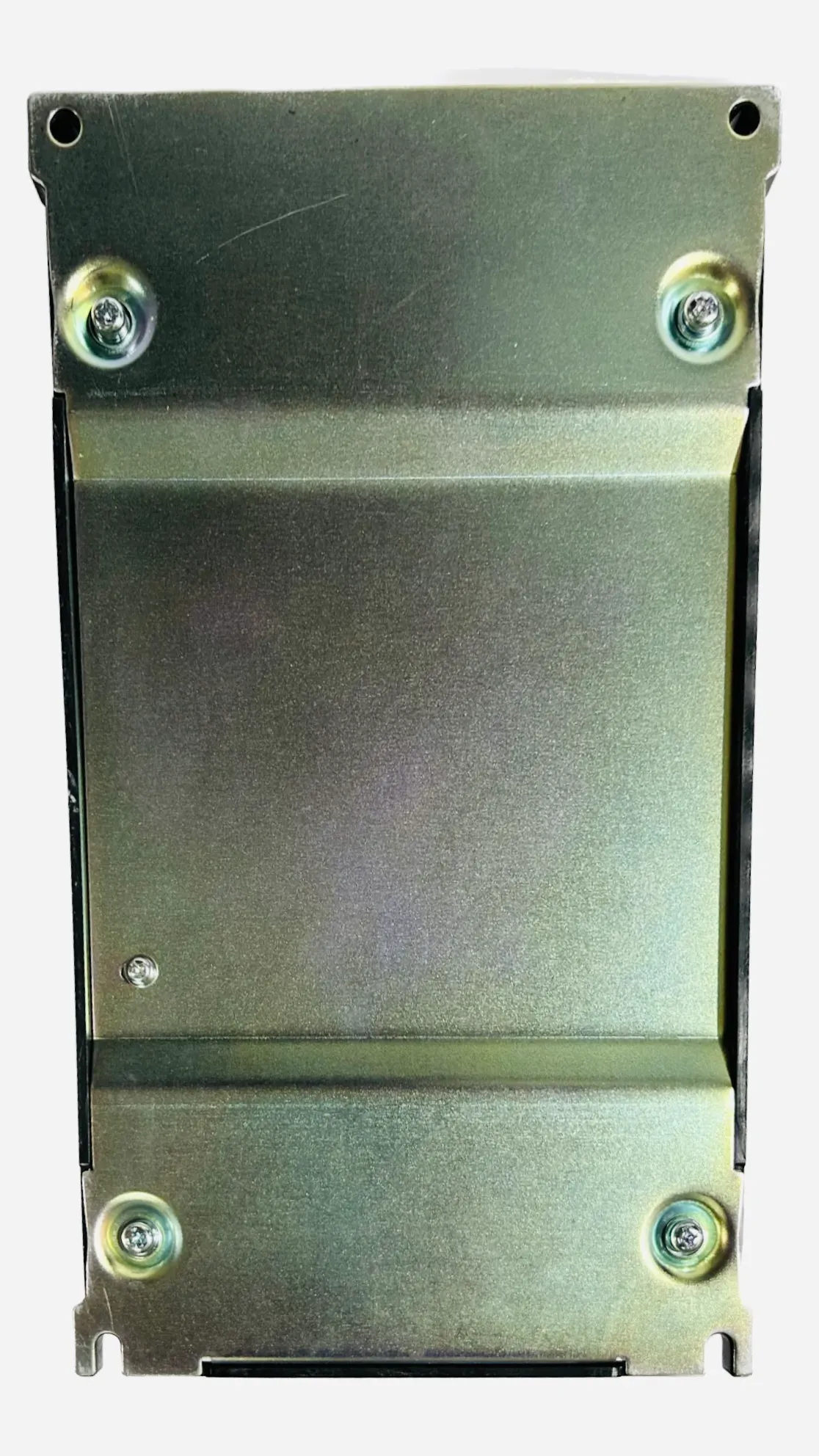

Solar VFD 10HP (7.5kW) – Advanced Solar Drive Solution by Narayana Solar
Technical Specifications
| Brand / Model | Crompton Greaves / VSR48017 Heavy Duty |
| Motor Support | IM, PMSM* |
| Maximum Input DC Current (A) | 30 |
| Output Current (A) | 17 |
| Input Supply (AC) | 380V |
| Input Supply (DC) | 540V |
| Maximum Input DC Voltage | 800VDC |
| Recommended Voc Range | 500-700VDC |
| Recommended MPPT Voltage Range | 450-600VDC |
| Starting Voltage Range | 230-800VDC |
| Output specification | Three phase 380V (-15%~30%) |
| Output frequency | 0~600.00Hz(Default 0~50.00Hz) |
| Weight (Kg) | 3.5 |
| Dimensions [HxWxD] | 249X146X181.7 |
| For Instant Assistance Call | 9922881120 |
High-Performance Solar VFD for Flour Mills & Irrigation Systems
Narayana Solar proudly offers a high-efficiency 10HP Solar VFD (7.5kW Variable Frequency Drive) designed to maximize the performance of solar-powered applications such as flour mills (Atta Chakki), agricultural irrigation pumps, and other industrial motor-driven systems.
Our advanced Solar VFD is engineered to efficiently convert DC power generated from solar panels into stable AC power required to run AC motors. Using intelligent inverter technology and photovoltaic optimization, the system ensures reliable and efficient power conversion for off-grid and hybrid solar applications.
Smart Energy Conversion with MPPT Technology
The Solar VFD from Narayana Solar features advanced MPPT (Maximum Power Point Tracking) technology. This ensures that your solar panels operate at peak efficiency throughout the day by continuously adjusting voltage and current parameters.
Key Benefits:
✔ Maximum solar energy utilization
✔ Reduced power loss during conversion
✔ Lower operating costs
✔ Improved motor performance
✔ Grid-tie compatibility for hybrid operation
This intelligent design ensures consistent performance even during fluctuating sunlight conditions.
Designed for Agricultural & Industrial Applications
Our 10HP Solar VFD is specially built for:
-
Solar flour mills (Atta Chakki)
-
Borewell and irrigation pump systems
-
Agricultural water pumping
-
Small industrial motor applications
The heavy-duty drive system supports both Induction Motors and Permanent Magnet Motors, making it versatile and reliable for various load conditions.
Real-Time Monitoring & Energy Management
Narayana Solar’s Solar VFD comes with integrated energy monitoring and management features that allow real-time tracking of system performance and energy consumption.
This enables:
-
Proactive maintenance
-
Fault detection and troubleshooting
-
Performance optimization
-
Increased energy savings
The standard LED display ensures easy operation and monitoring.
Advanced Technical Features
• Optimized and compact structural design
• Heavy-duty drive performance
• Built-in brake chopper
• High-speed pulse input
• 200% overload capacity for 1 second
• Built-in PLC logic functions
• Virtual Digital I/Os with multi-logic functions
• Timer and comparator functions
• Built-in C3 Class EMC filter
• Emo Wizard tool for easy configuration and debugging
Why Choose Narayana Solar?
At Narayana Solar, we provide reliable, cost-effective, and high-performance solar drive solutions tailored to your specific application needs.
✔ Expert technical guidance
✔ Complete installation support
✔ Competitive pricing
✔ Fast delivery
✔ Dedicated customer assistance
If you are looking for a durable and efficient 10HP Solar VFD for irrigation or flour mill applications, Narayana Solar is your trusted partner.
Contact us today to get a customized quotation and optimize your solar-powered motor system.
