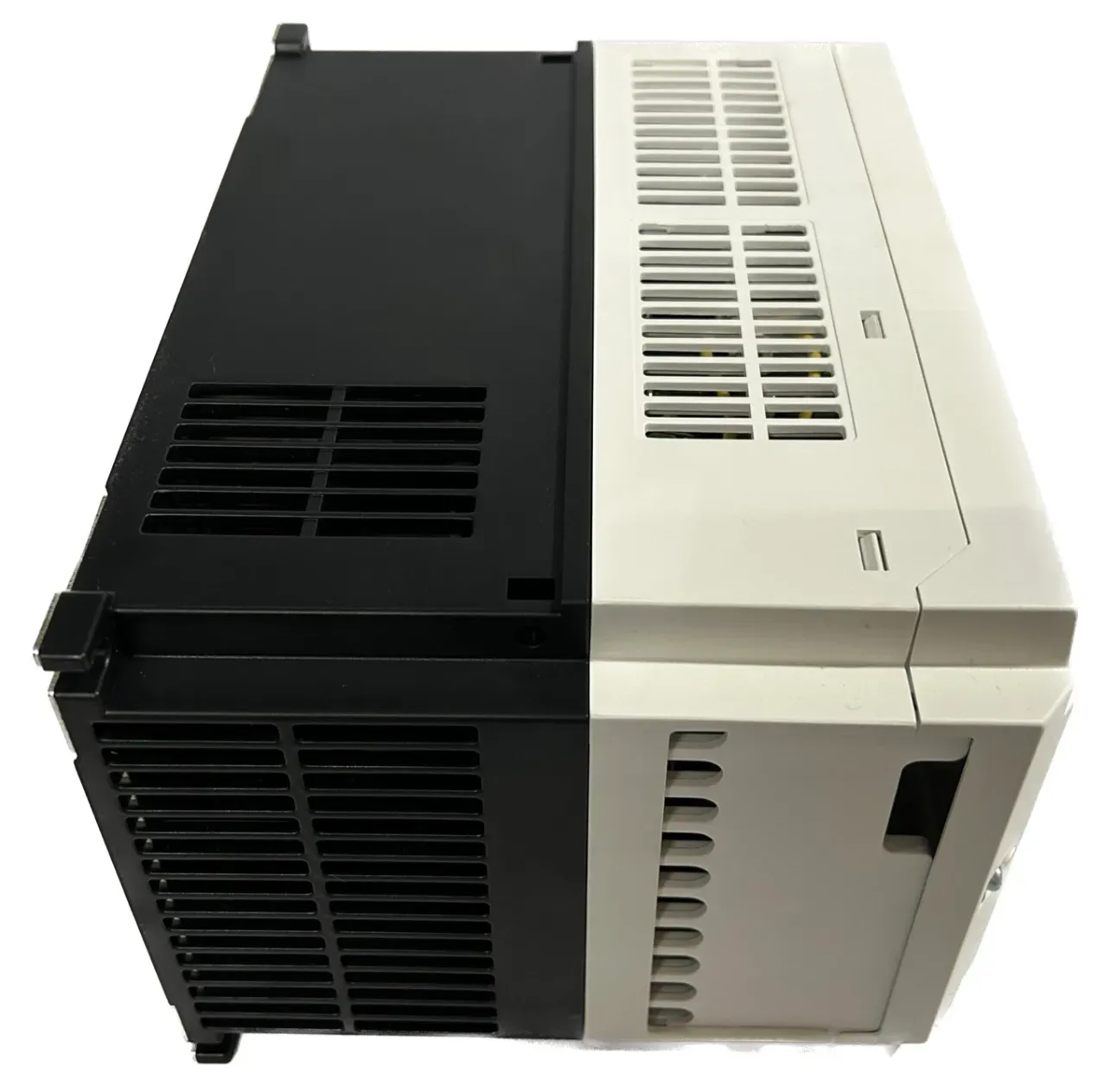

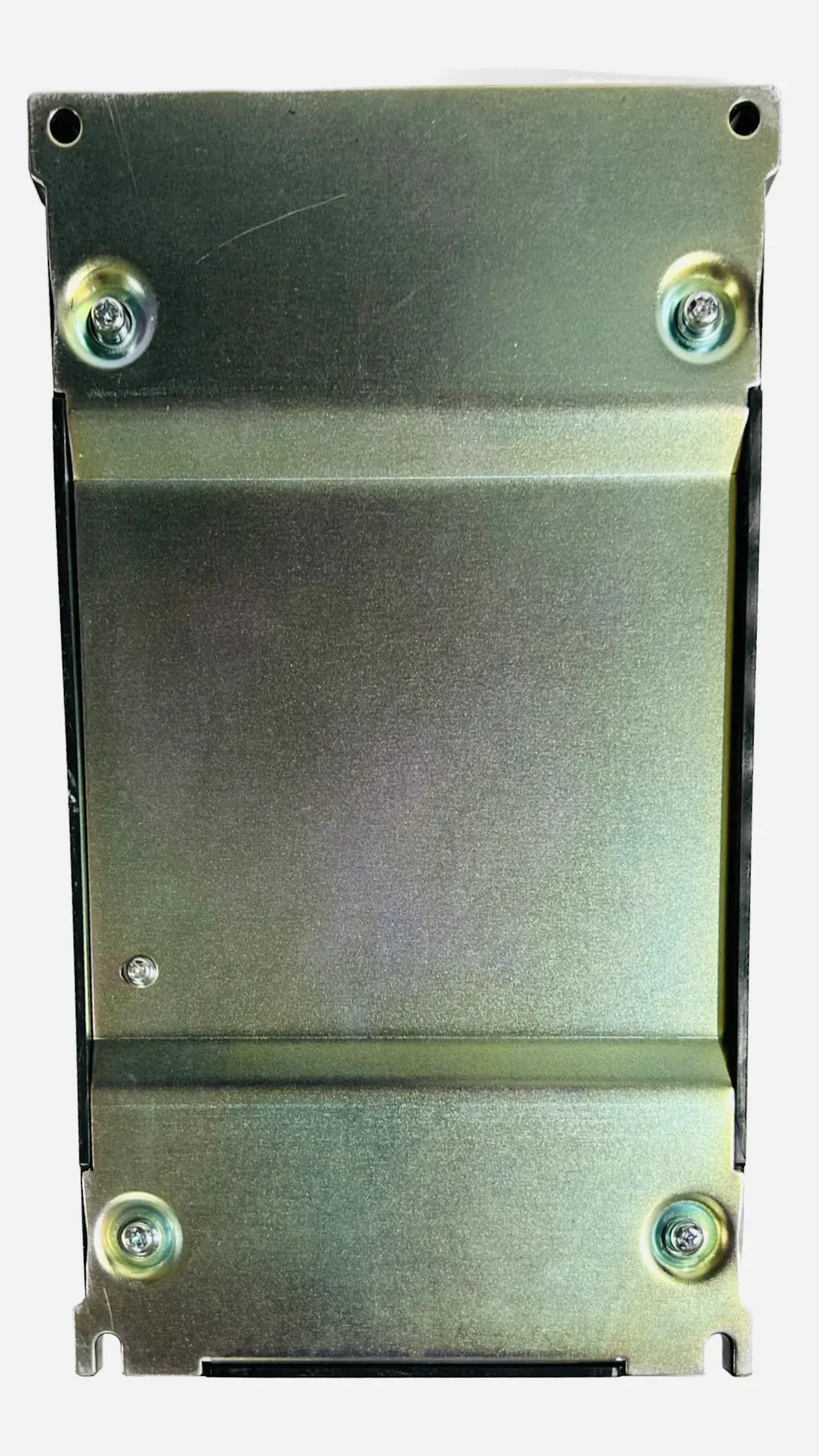

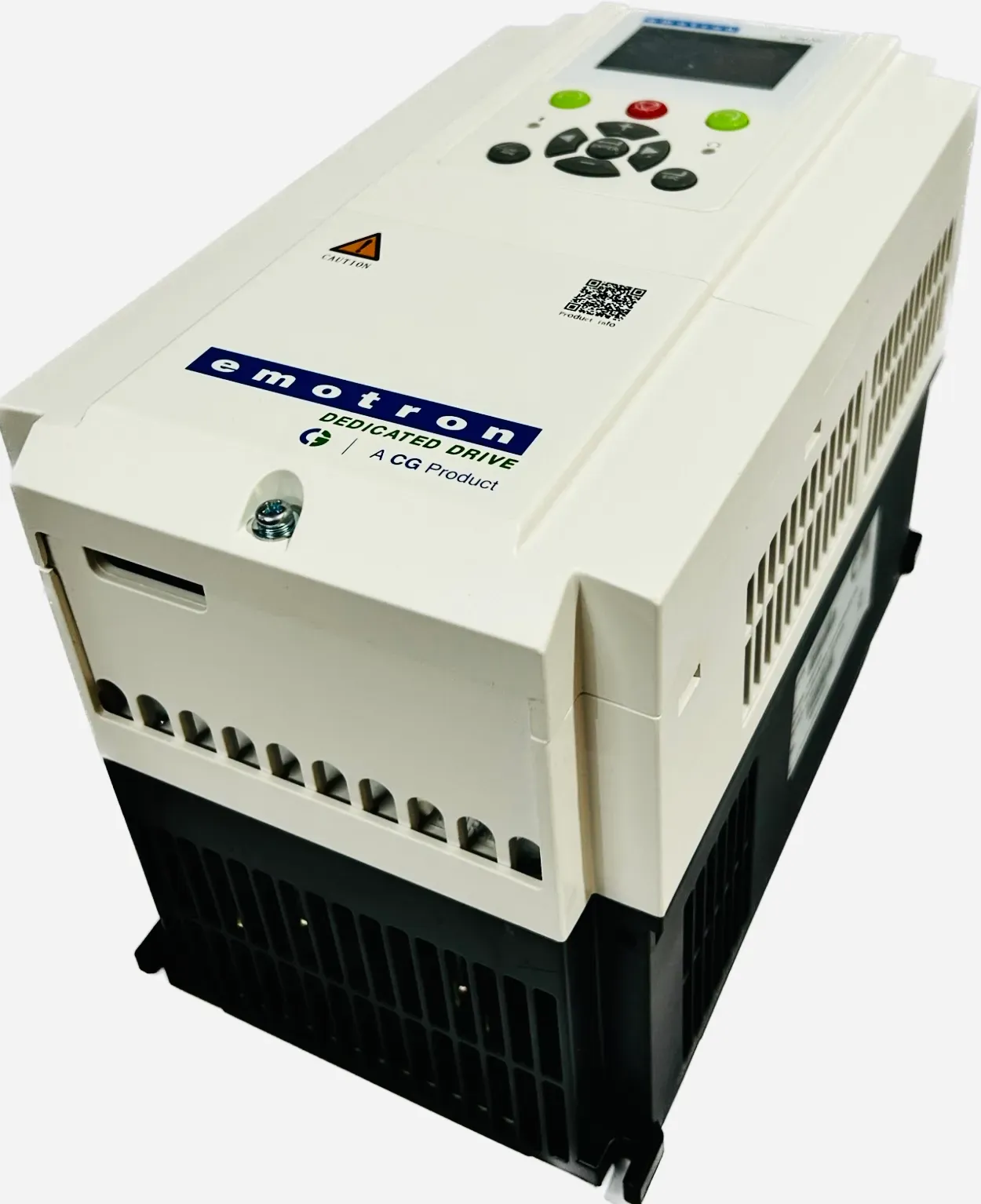

30HP Solar VFD (22kW) – High Performance Solar AC Motor Drive
Technical Specifications
| Brand / Model | Crompton Greaves / VSR48032 Heavy Duty |
| Motor Support | IM, PMSM* |
| Maximum Input DC Current (A) | 62 |
| Output Current (A) | 45 |
| Input Supply (AC) | 380V |
| Input Supply (DC) | 540V |
| Maximum Input DC Voltage | 800VDC |
| Recommended Voc Range | 500-700VDC (800V Max) |
| Recommended MPPT Voltage Range | 250-700VDC |
| Starting Voltage Range | 230-800VDC |
| Output specification | Three phase 380V (-15%~30%) |
| Output frequency | 0~600.00Hz(Default 0~50.00Hz) |
| Weight (Kg) | 6.5 |
| Dimensions [HxWxD] | 300X198X189.7 |
| For Instant Assistance | 9922881120 |
Advanced Solar VFD Solution for Industrial & Agricultural Applications
Our 30HP Solar VFD (22kW Solar Variable Frequency Drive) is a high-performance solar motor controller designed to efficiently convert DC power generated from solar panels into AC power for running heavy-duty AC motors. This advanced solar VFD system helps industries and agricultural users reduce electricity costs while maximizing solar energy utilization.
Built with cutting-edge photovoltaic inverter technology, this 30HP Solar VFD ensures stable output, intelligent motor control, and superior energy efficiency across various applications.
What is a Solar VFD?
A Solar Variable Frequency Drive (VFD) is a device that regulates motor speed by converting solar-generated DC power into controlled AC power. It optimizes motor performance, improves efficiency, and protects equipment from overload and voltage fluctuations.
Our 30HP (22kW) Solar VFD is specially designed for high-load operations and continuous industrial usage.
Ideal Applications
This heavy-duty solar VFD is suitable for:
-
Solar Irrigation Pumps
-
Flour Mills (Atta Chakki)
-
Oil Expellers
-
Agro-processing Units
-
Water Treatment Plants
-
Small & Medium Motor-Based Industries
-
Industrial Machinery & Manufacturing Units
It can operate existing AC induction motors as well as permanent magnet motors, making it a flexible and cost-effective upgrade for existing systems.
Key Technical Features
-
30HP / 22kW Capacity
-
Compatible with Induction & Permanent Magnet Motors
-
Advanced MPPT Technology for Maximum Solar Output
-
Strong Overload Capacity – 200% of rated load for 1 second
-
Built-in Brake Chopper
-
Built-in PLC Logic Functions
-
Virtual Digital I/Os with Multi-Logic Functions
-
Timer & Comparator Functions
-
High-Speed Pulse Input
-
Standard LED Display for Monitoring
-
Built-in C3 Class EMC Filter
-
Heavy-Duty Industrial Design
Why Choose Our 30HP Solar VFD?
✔ Reduces electricity and diesel dependency
✔ Improves motor life and operational efficiency
✔ Smart motor control with stable output
✔ Ideal for rural and industrial solar applications
✔ Durable and designed for long-term performance
✔ Easy installation and programming
This solar AC motor drive is designed to run motor-based industries directly on solar power, helping businesses achieve lower operational costs and energy independence.
Performance & Reliability
With intelligent load handling and advanced inverter technology, the 30HP Solar VFD ensures smooth startup, stable torque output, and reliable performance even under fluctuating solar conditions. The 200% overload capacity enhances protection during heavy startup loads.
Support & Nationwide Delivery
We provide:
-
Technical consultation
-
Product selection guidance
-
Competitive pricing
-
Fast delivery across India
-
Dedicated customer support
Our experts help you choose the right solar VFD configuration based on your motor capacity and application needs.
Optimize Your Solar Motor System Today
Upgrade your irrigation system, flour mill, oil expeller, or industrial machinery with our high-efficiency 30HP Solar VFD (22kW Solar Motor Drive) and start saving on energy costs.
Contact us today for pricing, technical details, and expert assistance.
