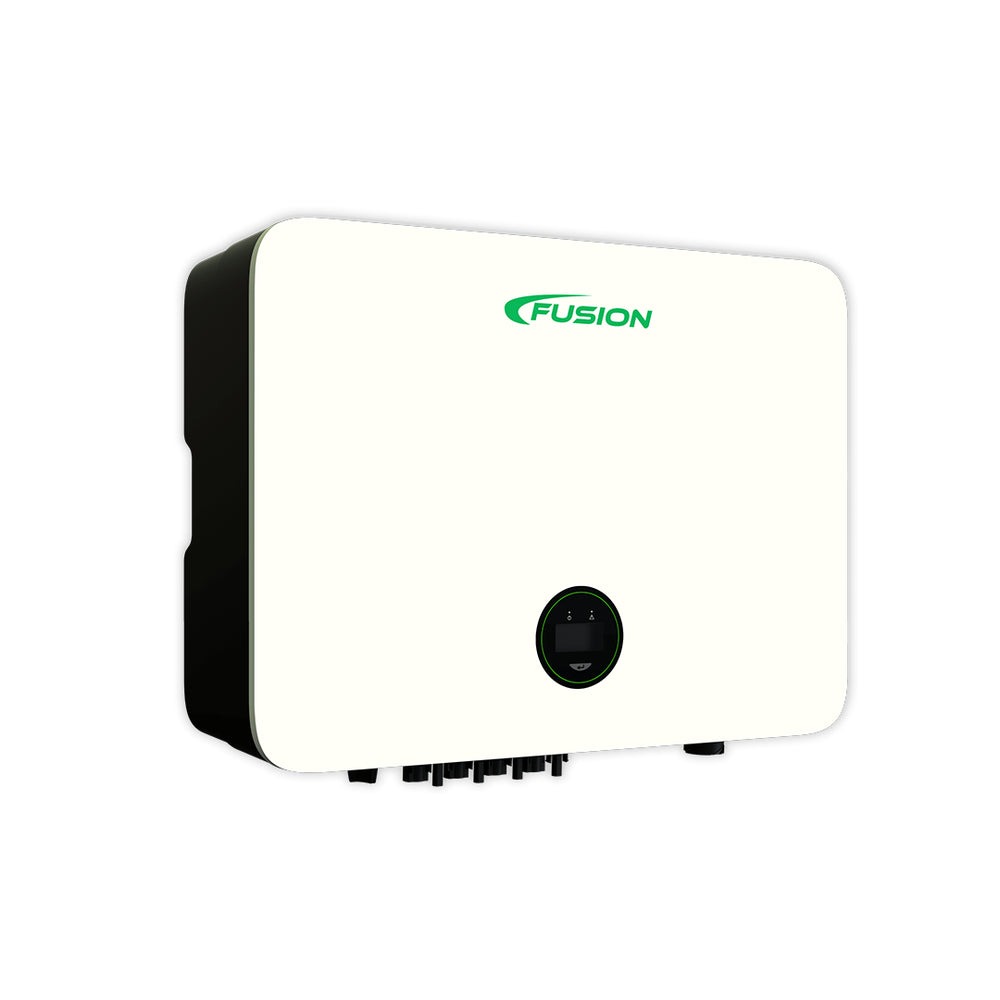

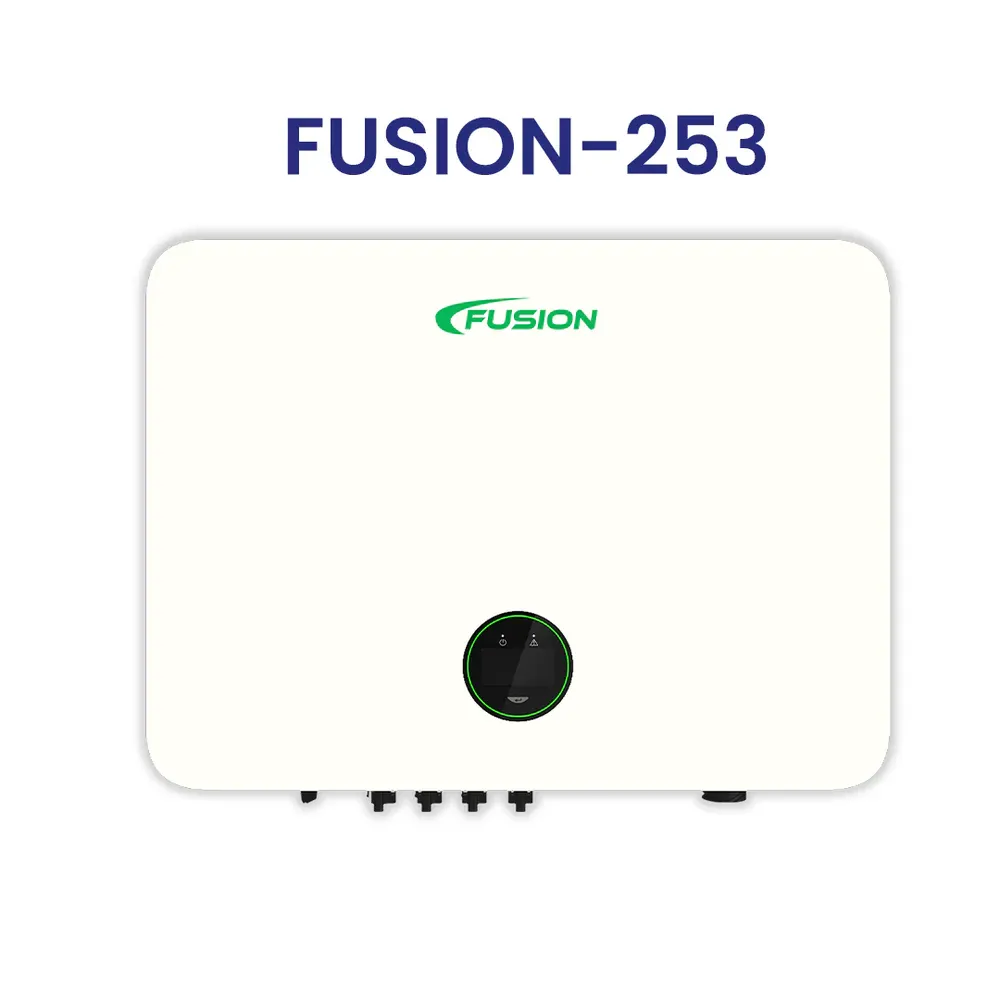

Fusion 5kW / 48V Hybrid Solar Inverter | Narayana Solar

Narayana Solar – Best Solar Company in India presents the Fusion 5kW / 48V Hybrid Solar Inverter, a high-efficiency inverter designed for residential and small commercial solar systems. This hybrid inverter works both on-grid and off-grid, offering reliable power backup and seamless grid support.

With advanced safety protections, dual MPPT technology, and battery compatibility, this inverter ensures maximum solar generation and stable energy storage performance.

Ideal for homes, villas, shops, and small offices looking for efficient and cost-effective solar solutions.

Key Features

✔ 5kW Hybrid Solar Inverter (48V System)
✔ Works with Grid + Battery (Hybrid Mode)
✔ High Efficiency up to 97.6%
✔ Pure Sine Wave Output
✔ Dual MPPT for Maximum Solar Utilization
✔ Wi-Fi Monitoring via Mobile App
✔ Compatible with Lead-Acid, Lithium & LiFePO4 Batteries
✔ IP65 Protection – Dust & Water Resistant
✔ Parallel Support (Up to 9 Units)
✔ 5-Year Warranty

Built-in protection features include reverse polarity protection, insulation monitoring, and automatic grid disconnection during power failure.

Electrical Specifications

• Model Number: Fusion 5H



• Capacity: 5kW / 48V



• Max DC Input Power: 5500W



• Rated PV Input Voltage: 370V



• Operating Voltage Range: 150–600V



• Start-Up Voltage: 150V



• Full Load DC Voltage Range: 230–400V



• MPPT: 2 (1+1 Strings)



• Rated Output Power: 5000W



• AC Output Current: 8.3A



• Efficiency: 97.3%



• Feed-in Phase: Single Phase



• Topology: Transformerless



Mechanical Specifications

• Operating Temperature: -45°C to 60°C



• Cooling: Natural Cooling



• Protection Degree: IP65



• Communication: RS485 / CAN (BMS Support)



• Weight: 15.1 kg



• Dimensions: 330 × 238 × 433 mm



• Installation: Wall-Mount



• Over-Voltage Protection: DC Type II / AC Type III



• Warranty: 5 Years



Choose Narayana Solar for genuine hybrid solar inverters, expert installation, and complete solar power solutions across India.

Contact us today for the best price on Fusion 5kW Hybrid Solar Inverter.
