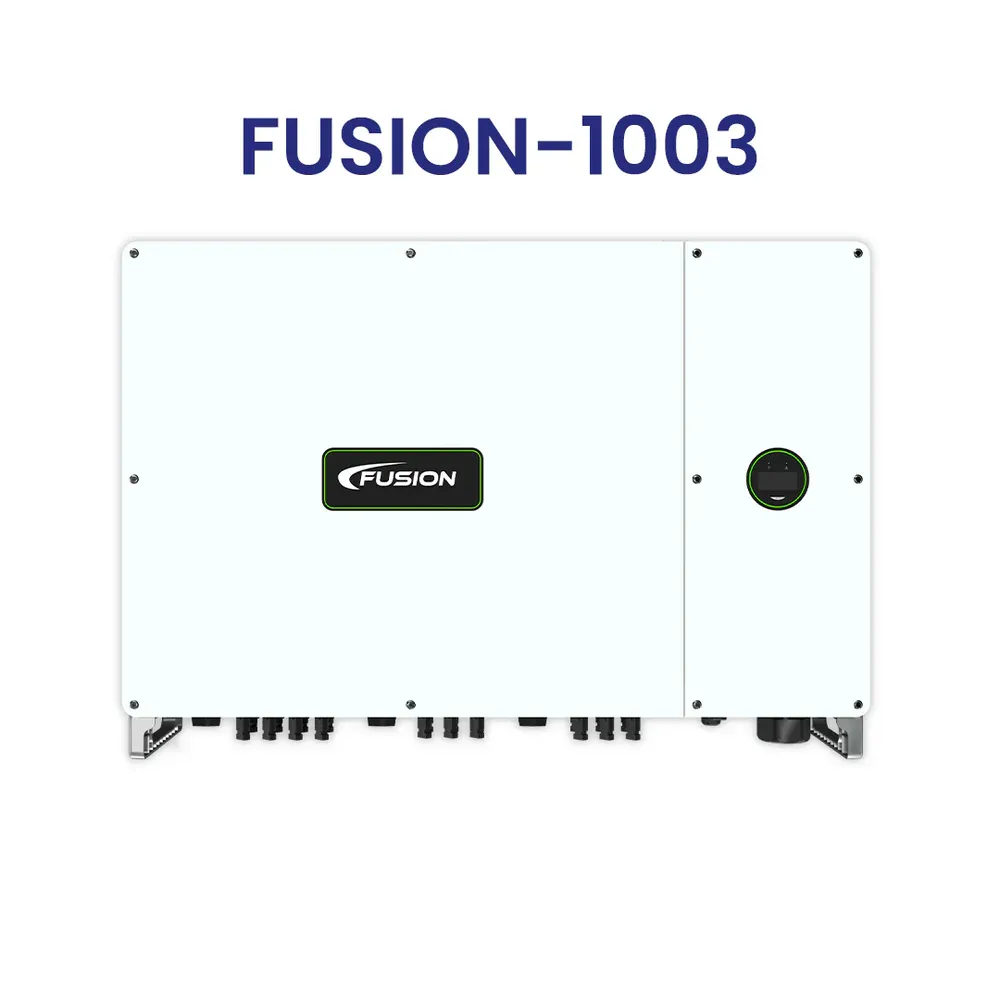

Fusion 100 kW On-Grid Solar Inverter (Fusion 1003)

The Fusion 100 kW On-Grid Solar Inverter is a high-performance, three-phase grid-tied inverter designed for large commercial and industrial solar power systems. It efficiently converts DC electricity generated from solar panels into AC electricity for use in facilities and seamless export to the utility grid.

This on-grid system operates without batteries and is ideal for reducing electricity bills through net metering. Any excess solar power generated can be exported to the power distribution company, maximizing return on investment.

For enhanced safety, the inverter is engineered to automatically disconnect from the grid during power outages. This anti-islanding protection ensures that no electricity is fed back into the grid, safeguarding maintenance personnel and utility workers.

Key Features

• On-Grid / Grid-Tied inverter



• Designed for commercial and industrial applications



• Supports net metering for electricity bill savings



• Automatic grid disconnection during outages



• High-efficiency transformerless topology



• Low noise operation

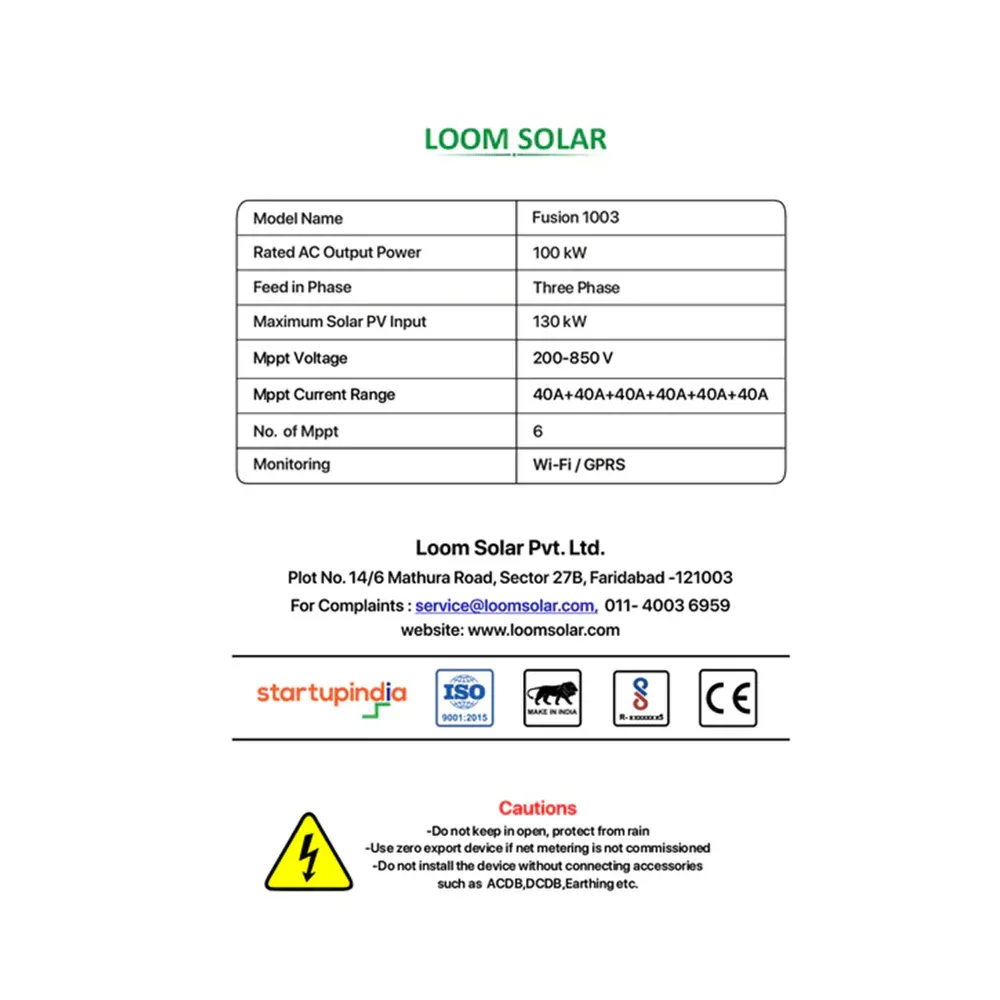

Key Technical Specifications

Model Name: Fusion 1003
System Rating: 100 kW, Three Phase
Maximum Solar Panel Connection: 130,000 Watts
Efficiency: 98.6%
Feed-in Phase: Three-Phase
Topology: Transformerless
Number of MPPT Controllers: 6
Noise Level: < 30 dBA
Weight: 73.7 kg
Dimensions (L × H × W): 838 × 568 × 323 mm

Contact Narayana Solar today for the best price on Fusion 100 kW On-Grid Solar Inverter.
