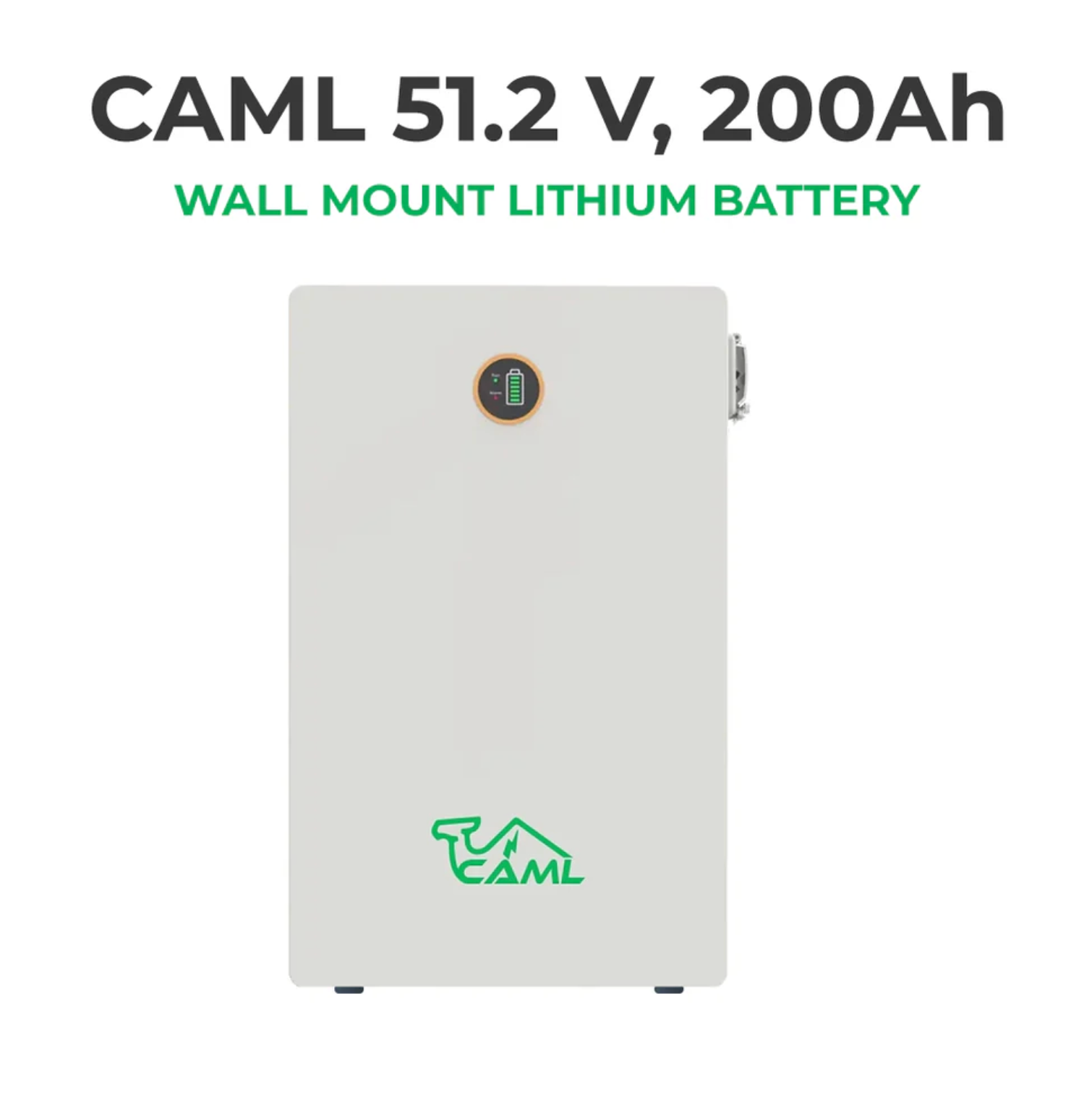

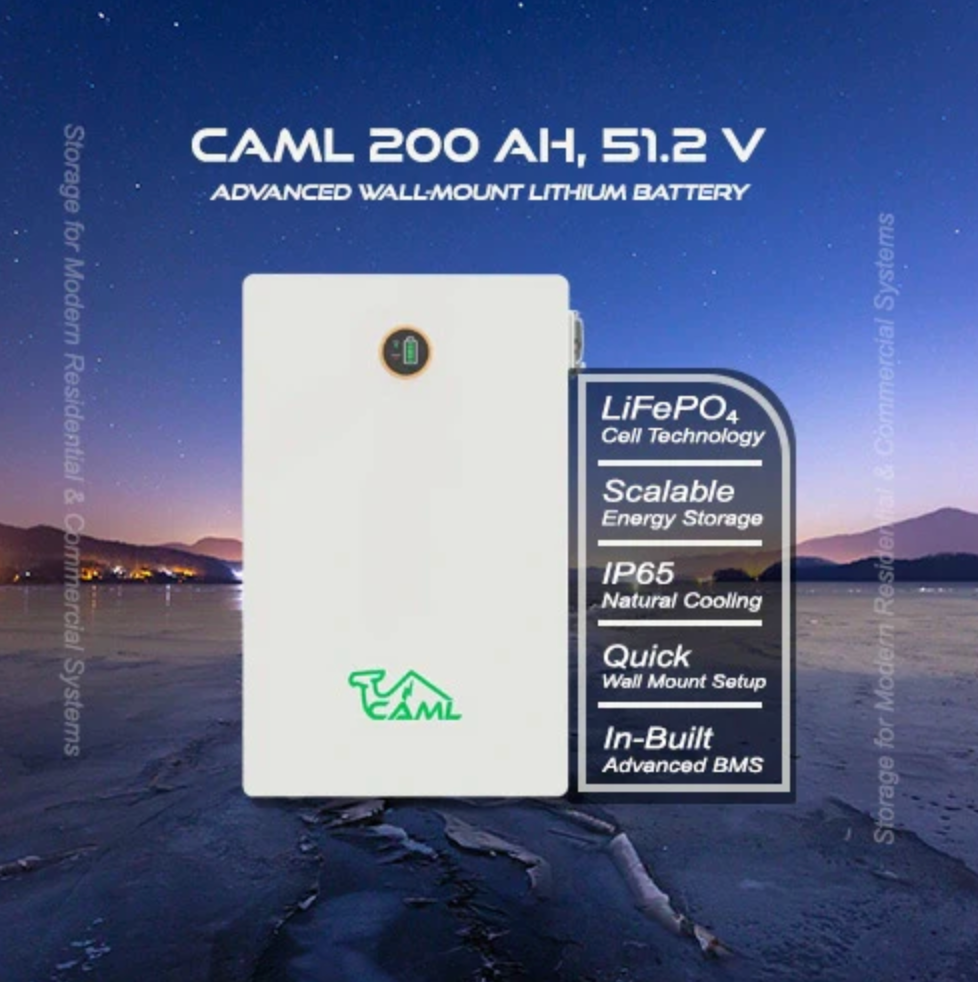

CAML 51.2V 200Ah (10.24kWh) LiFePO4 Battery – Wall Mount

The CAML 51.2V 200Ah 10.24kWh LiFePO4 Wall-Mount Lithium Battery is a high-capacity energy storage solution designed for residential, commercial, and industrial solar applications. Built using advanced Lithium Iron Phosphate (LiFePO4) technology, this battery delivers superior safety, long lifespan, and high energy efficiency compared to traditional Lead-Acid and SMF batteries.

With a powerful 10.24kWh energy capacity and 51.2V output, this battery ensures reliable backup power and seamless integration with hybrid and off-grid inverters. The integrated Smart Battery Management System (BMS) protects against overcharging, over-discharging, overheating, and short circuits, ensuring stable and safe performance.

Its sleek wall-mount design optimizes space utilization, making it ideal for homes, offices, and commercial installations. The battery supports parallel expansion, allowing users to increase storage capacity as energy needs grow.

Delivering 6000+ charge cycles at 80% Depth of Discharge (DoD), this lithium battery offers 10–15 years of dependable service. With fast charging capability (2–3 hours), IP65 protection, and 98% efficiency, it is a modern, maintenance-free alternative to conventional battery systems.

Key Features

• 10.24kWh High Energy Storage Capacity



• 51.2V, 200Ah LiFePO4 Battery



• 6000+ Cycles @ 80% DoD



• Smart BMS with CAN / RS-485 / RS-432 Communication



• Fast Charging in 2–3 Hours



• IP65 Protection Class



• Expandable in Parallel Configuration



• Lightweight & Space-Saving Wall-Mount Design



• 98% High Efficiency



• 5-Year Warranty



Performance Advantages

• 3–4x longer lifespan than Lead-Acid batteries



• Zero maintenance & no memory effect



• High charge and discharge efficiency



• Wide operating temperature range (-20°C to 65°C)



• Safe modular design with intelligent battery protection



• Ideal for high-load residential and commercial systems



Applications

• Residential Solar Energy Storage Systems



• Commercial & Industrial Solar Installations



• Hybrid Solar Power Systems



• Off-Grid Solar Solutions



• Telecom & Server Backup Power

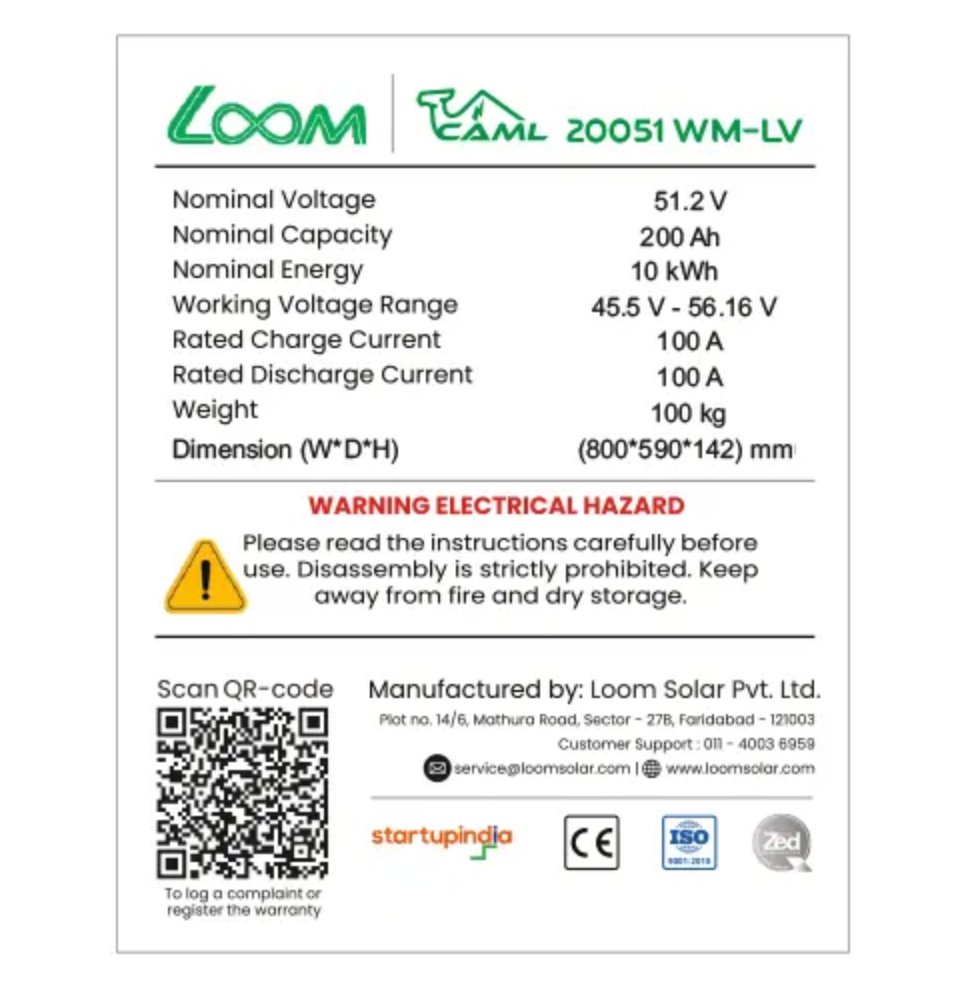

Technical Specifications

Manufacturer: Loom Solar
Model Number: CAML 20051-WM
Rated Capacity: 10.24kWh (51.2V / 200Ah)
Cell Technology: Lithium Iron Phosphate (LiFePO4)
Charging Cut-off Voltage: 56.16V
Recommended Charge Current: 0.2C (20A)
Max Charge Current: 50A
Max Output Power: 10kWh
Communication Ports: CAN / RS-485 / RS-432
Protection Class: IP65
Operating Temperature: -20°C to 65°C
Cycle Life: 6000 Times @ 80% DoD

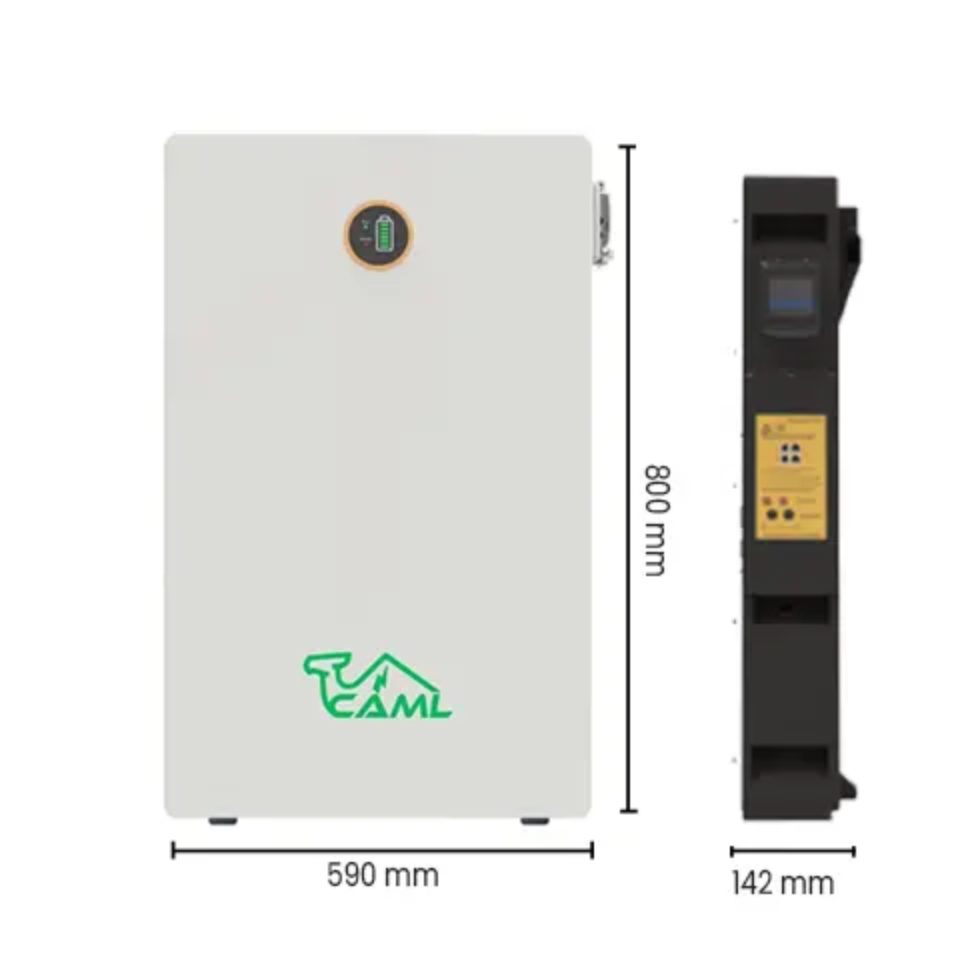

Installation Type: Wall-Mount
Warranty: 5 Years
Efficiency: 98%
