CAML 51.2V 100Ah (5.12kWh) Rack-Mount Lithium Battery

The CAML 51.2V 100Ah 5.12kWh Rack-Mount Lithium Battery is a high-performance energy storage solution designed for residential, commercial, and industrial solar applications. Built with advanced Lithium Iron Phosphate (LiFePO4) cell technology, this battery ensures superior safety, long lifespan, and consistent performance compared to traditional Lead Acid and SMF batteries.

With a powerful 51.2V output and 100Ah capacity, this battery delivers reliable backup power and seamless integration with hybrid and off-grid solar inverters. The integrated Smart BMS (Battery Management System) provides intelligent protection against overcharging, deep discharge, overheating, and short circuits, ensuring safe and stable operation.

Designed for space efficiency, the rack-mount structure optimizes installation in server racks or battery cabinets. The system supports parallel expansion of up to 32 batteries, allowing scalability up to 160kWh for larger energy storage requirements.

Its fast charging capability (2–4 hours), high discharge efficiency (94.5%+), and lightweight design (just 46kg) make it a modern, maintenance-free alternative to conventional batteries.

Key Features

• 5.12kWh Energy Storage Capacity



• 51.2V, 100Ah LiFePO4 Battery



• Smart BMS with RS-485 / CAN Communication



• 94.5%+ High Charge & Discharge Efficiency



• Expandable up to 32 Batteries (160kWh System)



• Rack-Mount Space-Saving Design



• Fast Charging in 2–4 Hours



• Pre-Charge Protection Circuit



• Lightweight (Only 46kg)



• 5-Year Warranty



Performance & Safety Advantages

• Modular design for flexible system expansion



• Built-in pre-charge circuit to prevent inrush current



• High Ah efficiency up to 100%



• Wide operating temperature range



• Minimal maintenance required



• 3–4 times longer lifespan than Lead Acid batteries



Applications

• Residential Solar Power Systems



• Commercial Solar Energy Storage



• Hybrid & Off-Grid Solar Installations



• Telecom Backup Systems



• Server & Rack-Based Power Backup

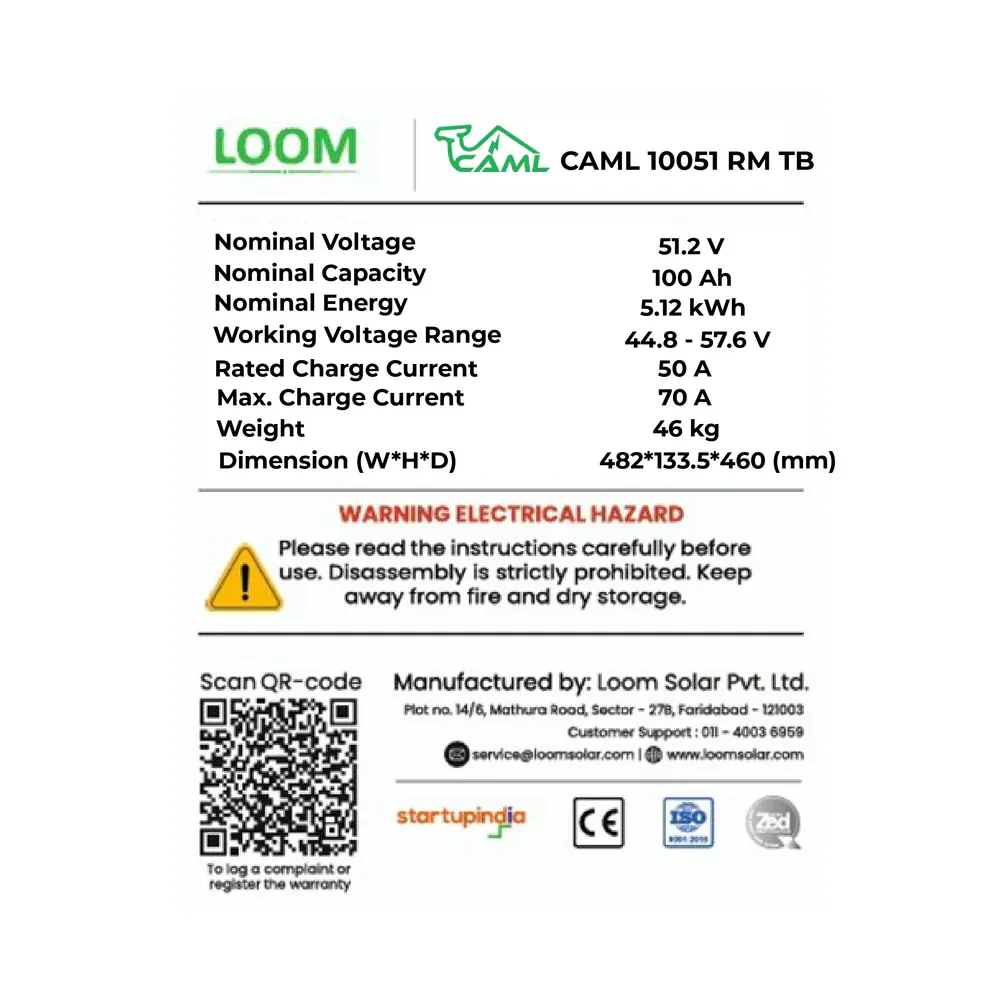

Technical Specifications

Manufacturer: Loom Solar
Model Type: Rack-Mount Lithium Battery
Cell Type: Lithium Iron Phosphate (LiFePO4)
Rated Voltage: 51.2V
Nominal Capacity: 100Ah
Nominal Energy: 4.92kWh @ 0.2C
Charge Voltage: 56.0V
Float Voltage: 54.6V
Max Charge Current: 70A
Max Discharge Current: 100A
Peak Discharge Current: 120–200A (15 sec)
Communication: RS-485 / CAN
Parallel Support: Up to 32 Batteries


Operating Temperature:

• Charge: -5°C to 50°C

• Discharge: -10°C to 50°C
  Weight: 46 kg

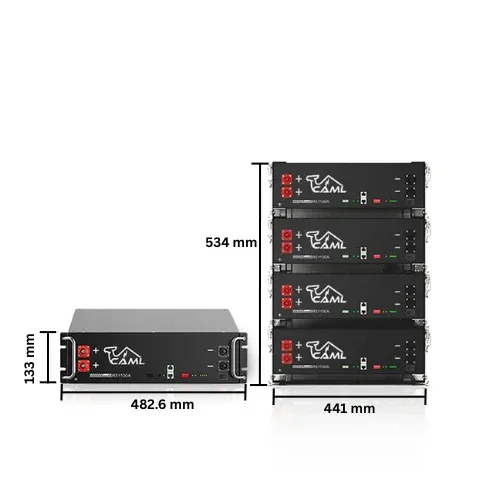

  Dimensions: 482 × 460 × 133.5 mm
  Warranty: 5 Years
