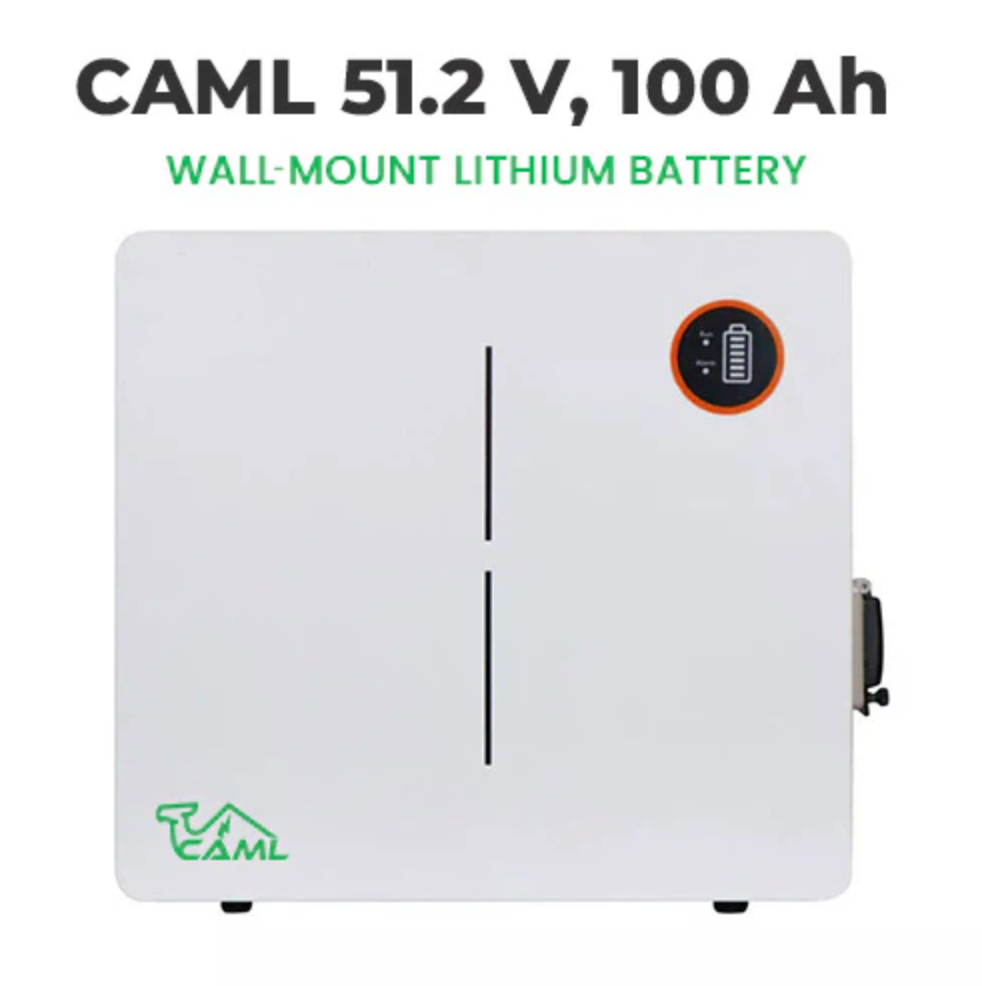

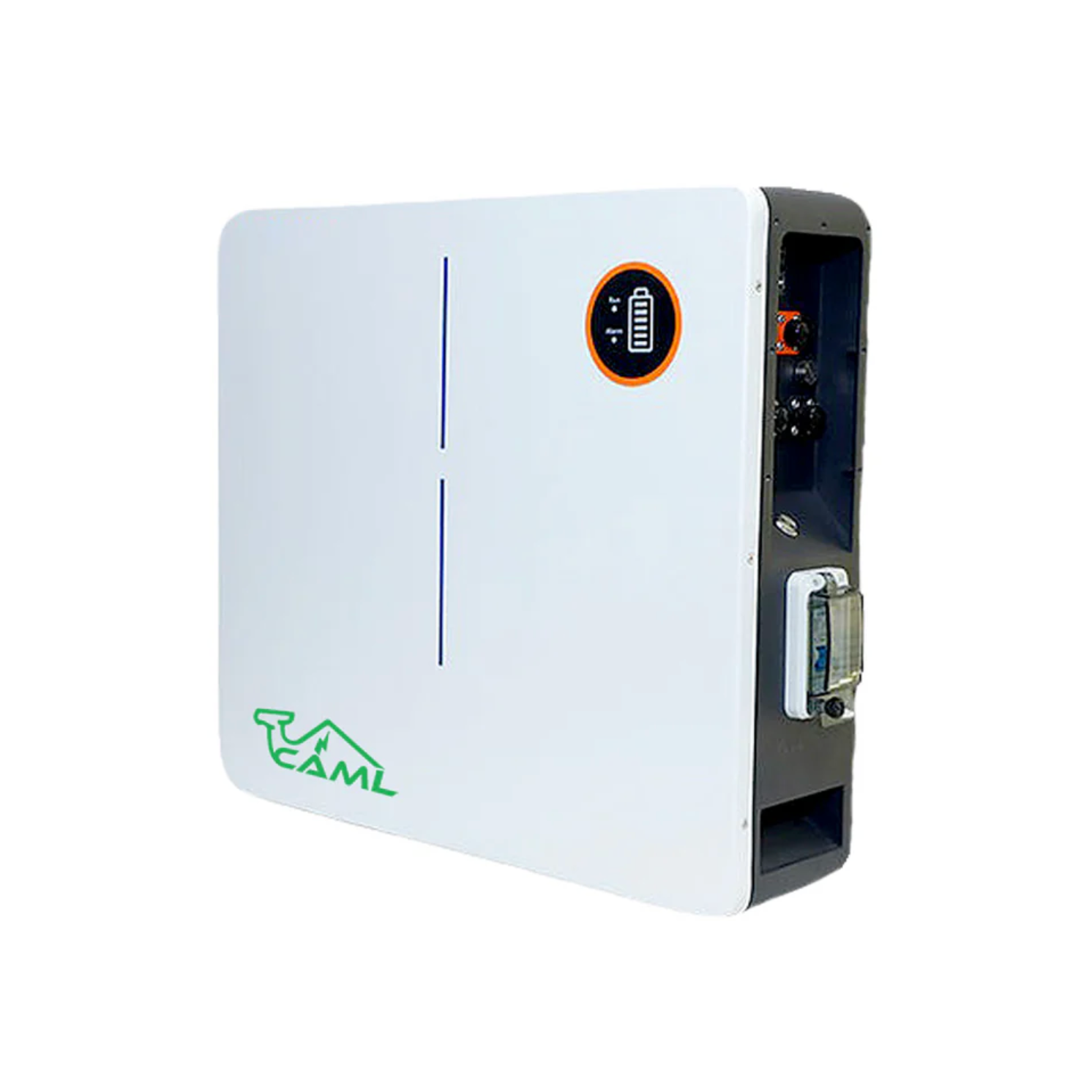

CAML 51.2V 100Ah (5.12kWh) LiFePO4 Battery – Wall Mount

The CAML 51.2V 100Ah 5.12kWh LiFePO4 Wall-Mount Lithium Battery is a premium energy storage solution designed for residential and commercial solar power systems. Built with advanced Lithium Iron Phosphate (LiFePO4) cell technology, this battery ensures superior safety, long lifespan, and consistent high performance.

With a powerful 5.12kWh energy capacity and 51.2V output, this wall-mounted lithium battery provides reliable backup power for hybrid and off-grid solar installations. The integrated Smart BMS (Battery Management System) protects against overcharging, over-discharging, overheating, and short circuits, ensuring safe and stable operation.

Designed for space efficiency, the sleek wall-mount structure saves floor space while delivering high energy density. Compared to traditional Lead-Acid and SMF batteries, it is 75% lighter, completely maintenance-free, and offers up to 6000+ charge cycles at 80% Depth of Discharge, translating to 10–15 years of usable life.

With fast charging capability (full charge in 2–3 hours), IP65 protection, and support for parallel expansion, the CAML 51.2V lithium battery is a future-ready solution for modern solar energy storage needs.

Key Features

• 5.12kWh Energy Storage Capacity



• 51.2V, 100Ah LiFePO4 Battery



• 6000+ Cycles @ 80% DoD



• Smart BMS with CAN / RS-485 Communication



• Fast Charging in 2–3 Hours



• IP65 Protection (Indoor Use)



• Expandable in Parallel Configuration



• Lightweight & Compact Wall-Mount Design



• 98% High Efficiency



• 5-Year Warranty



Performance Advantages

• 3–4x longer lifespan than Lead-Acid batteries



• Zero maintenance & no memory effect



• High charge/discharge efficiency



• Wide operating temperature range (-20°C to 65°C)



• Safe modular design with advanced battery protection



• Suitable for residential and commercial solar systems



Applications

• Residential Solar Energy Storage



• Hybrid Solar Systems



• Off-Grid Solar Installations



• Commercial Power Backup



• Telecom & Server Backup

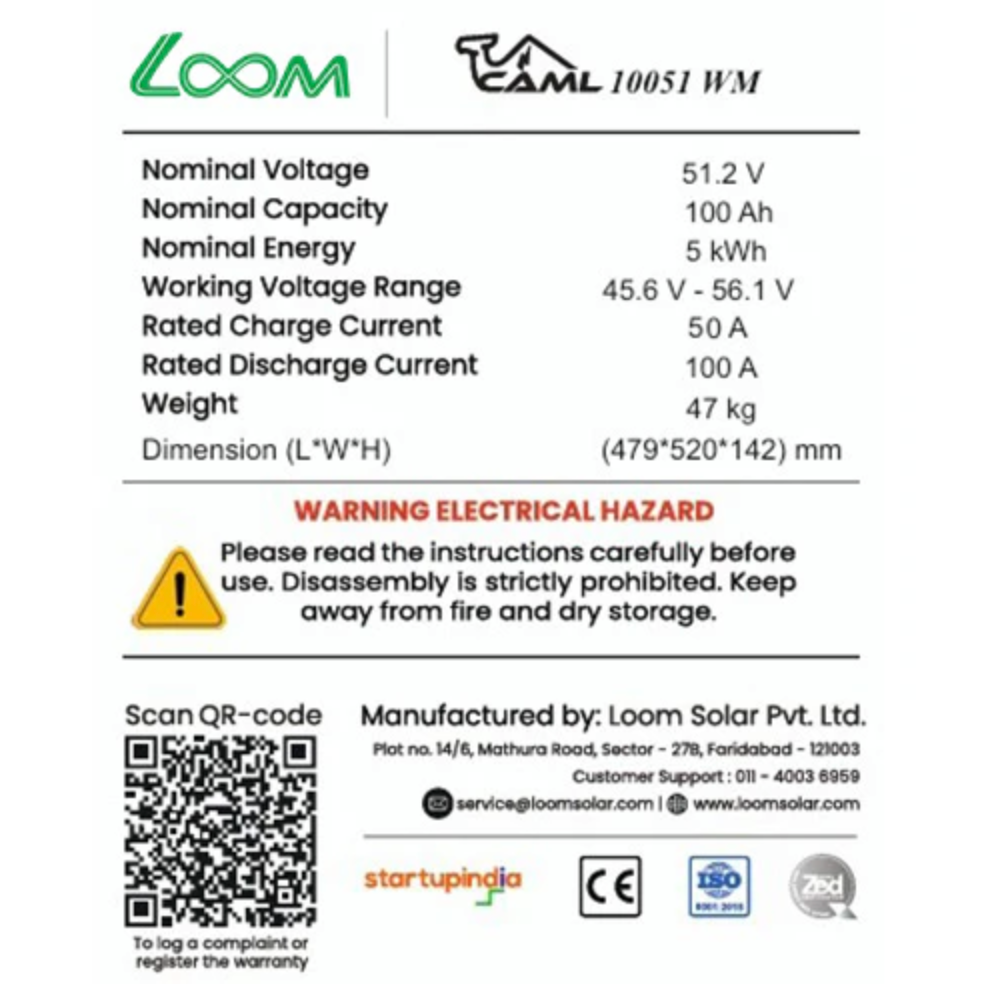

Technical Specifications

Manufacturer: Loom Solar Pvt. Ltd.
Model Number: CAML10051-WM
Rated Capacity: 5120Wh (51.2V / 100Ah)
Cell Technology: Lithium Iron Phosphate (LiFePO4)
Charging Cut-off Voltage: 56.16V
Recommended Charge Current: 0.2C (20A)
Max Charge Current: 50A
Max Output Power: 5.0kW
Communication: CAN / RS-485
Protection Class: IP65
Operating Temperature: -20°C to 65°C
Cycle Life: 6000 Times @ 80% DoD
Installation Type: Wall-Mount
Warranty: 5 Years
Efficiency: 98%
