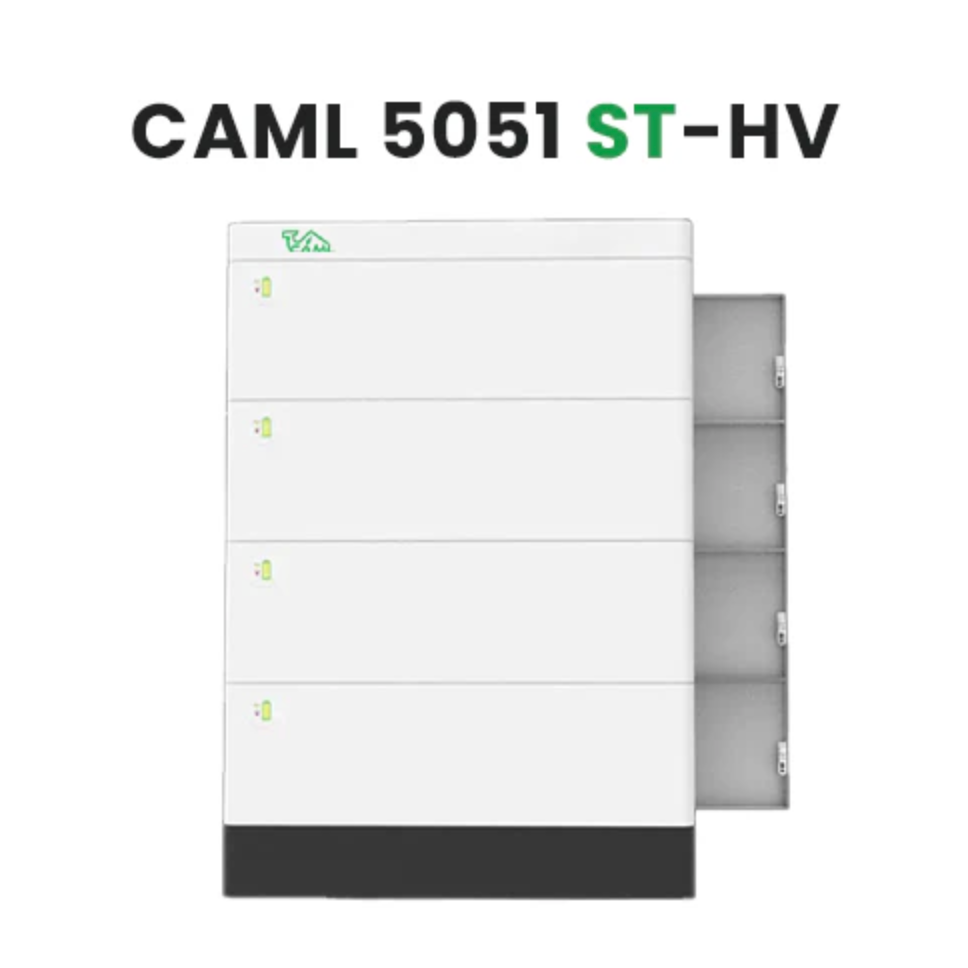

CAML 50Ah 204.8V 10kWh High-Voltage Stackable LiFePO4 Lithium Battery

The CAML 50Ah 204.8V 10kWh High-Voltage Stackable Lithium Battery is a powerful and scalable energy storage solution designed for high-demand residential and commercial applications. Manufactured by Loom Solar, this advanced LiFePO4 battery system is ideal for restaurants, hotels, hospitals, offices, and large homes that require reliable and continuous power backup.

Built with a high-voltage Battery Management System (BMS), the system ensures safe, balanced, and optimized charging and discharging. It delivers up to 6000 charge cycles at 80% Depth of Discharge, offering a lifespan of 15–20+ years with minimal performance degradation.

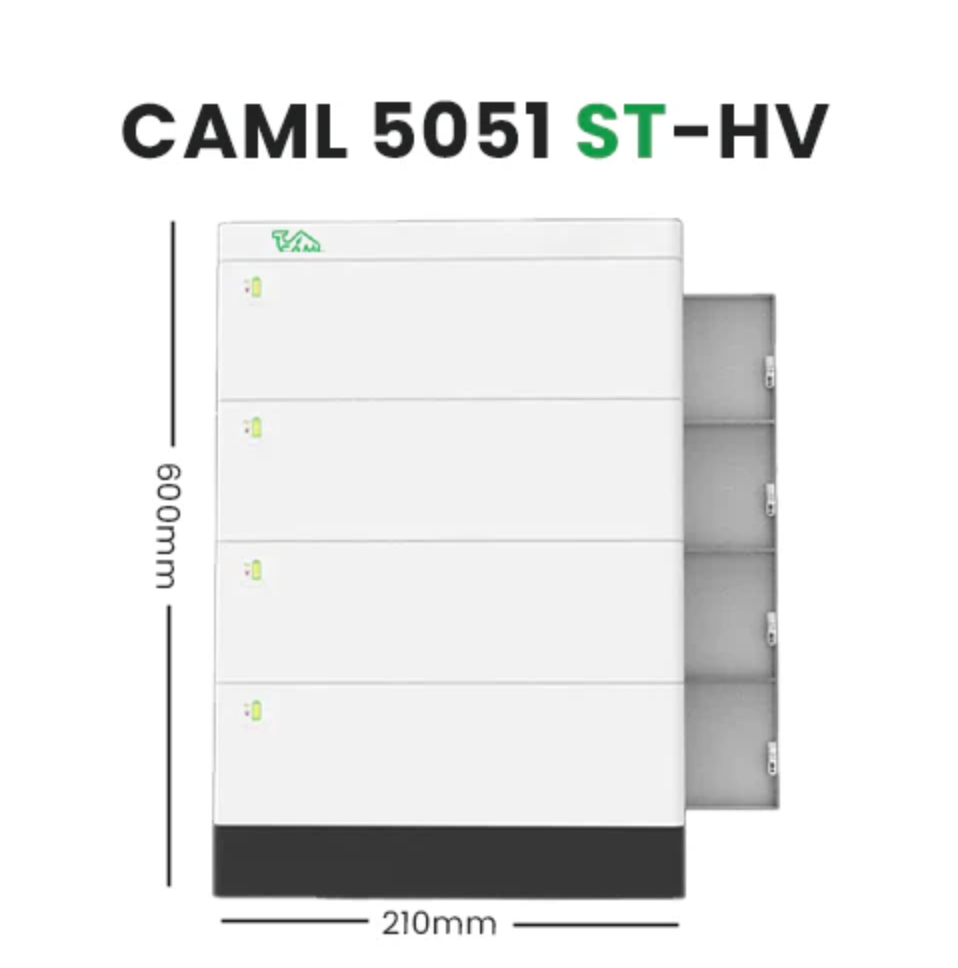

The modular stackable design allows flexible expansion as energy needs grow. Each module offers 2.55kWh (51.2V, 50Ah), and a complete 4-module system delivers approximately 10.2kWh total capacity. It supports parallel expansion with up to 4 clusters (3–10 units per cluster), making it suitable for larger solar energy storage systems.

With fast charging capability (2–3 hours), 98% efficiency, and compatibility with major inverter brands like Growatt, GoodWe, Deye, Luxpower, and Voltronics (transformer-less hybrid inverters), this battery system provides seamless integration into modern hybrid and off-grid solar setups.

Lightweight, compact, and easy to install, it weighs nearly one-quarter of traditional SMF and Lead-Acid batteries while delivering superior durability and performance.

Key Features

• 10kWh High-Voltage Energy Storage System

• 204.8V Stackable Modular Design

• 6000+ Cycles @ 80% DoD

• Advanced High-Voltage Smart BMS

• Fast Charging in 2–3 Hours

• Expandable Modular Architecture

• CAN / RS-485 Communication Ports

• 98% High Efficiency

• IP65 Protection Class

• 5-Year Warranty

• Lightweight & Space-Saving Design

Performance & Design Advantages

Scalable Modular System

Supports easy expansion with multiple battery modules connected in clusters to meet growing energy requirements.

Advanced Battery Management System

Monitors voltage, temperature, and current to ensure safe operation, balanced charging, and extended lifespan.

Easy Installation

Compact stackable structure with standardized connectors reduces installation time and simplifies system setup.

Multiple Communication Interfaces

Integrated CAN and RS-485 enable real-time monitoring and seamless integration with inverters and Energy Management Systems (EMS).

Long Lifespan

Designed for over 6000 cycles, delivering consistent performance for 20+ years under optimal conditions.

Applications

• High-Load Residential Solar Systems

• Hotels & Restaurants

• Hospitals & Healthcare Facilities

• Commercial & Industrial Solar Projects

• Hybrid & Off-Grid Energy Storage Systems

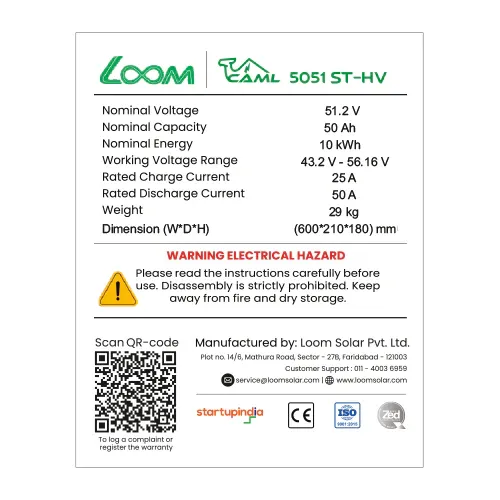

Technical Specifications (Per Module – 2.55kWh)

• Rated Capacity: 2550Wh / 51.2V / 50Ah

• Charging Cut-off Voltage: 56.16V

• Recommended Charge Current: 25A

• Max Continuous Charge/Discharge Current: Up to 50A

• Peak Current: 100A

• Communication: CAN / RS-485

• Cycle Life: 6000 Times @ 80% DoD

• Efficiency: 98%

• Protection Class: IP65

• Cooling: Natural Convection

• Installation: Wall-Mount / Stackable

• Warranty: 5 Years
