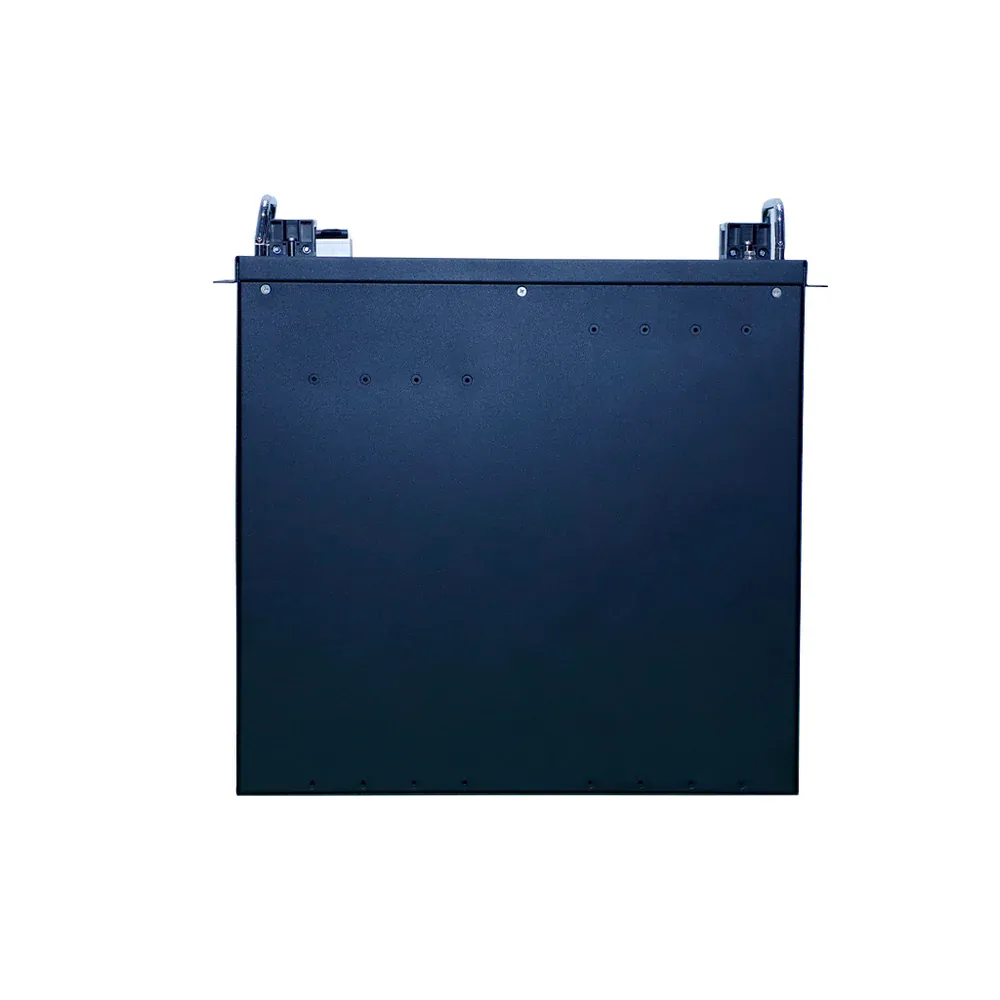

CAML 48V 100Ah (5kWh) Lithium Battery – Rack Mount

The CAML 48V 100Ah (5kWh) LiFePO4 Lithium Battery – Rack Mount is a high-performance energy storage solution designed for residential, commercial, and industrial solar systems. Built with advanced Lithium Iron Phosphate (LiFePO4) cell technology, this battery delivers 3500+ charge cycles at 80% Depth of Discharge, ensuring 10–15 years of reliable performance.

With a powerful 5kWh energy capacity and 48V output, this rack-mount lithium battery is compatible with hybrid and off-grid inverters via CAN and RS-485 communication ports. The built-in Smart BMS (Battery Management System) protects against overcharging, deep discharge, overheating, and short circuits.

This battery supports fast charging (full charge in 2–3 hours), parallel expansion for higher capacity, and operates efficiently in a wide temperature range (-20°C to 65°C). Compared to traditional SMF and lead-acid batteries, it is 75% lighter, maintenance-free, and highly energy-efficient (98%).

Ideal for solar energy storage, backup power systems, telecom setups, and commercial energy storage applications.

Key Features

• 5kWh Energy Storage Capacity

• 48V 100Ah LiFePO4 Battery

• 3500 Cycles @ 80% DoD

• Fast Charging (2–3 Hours)

• Rack-Mount Installation

• Smart BMS with CAN / RS-485 Communication

• Expandable in Parallel Configuration

• IP65 Protection

• 98% High Efficiency

• 5-Year Warranty

• Zero Maintenance & No Memory Effect

Technical Highlights

• Model: CAML-10048 RM

• Rated Capacity: 100Ah

• Nominal Voltage: 48V

• Max Output Power: 5.0 kW

• Cycle Life: 3500 Times @ 80% DoD

• Operating Temperature: -20°C to 65°C

• Recommended Charge Current: 0.2C (20A)

• Communication: CAN / RS-485

• Installation Type: Rack-Mount

• Protection Class: IP65

• Grid Compatibility: Off-Grid & Hybrid

Contact Narayana Solar today for the best price and expert guidance.
