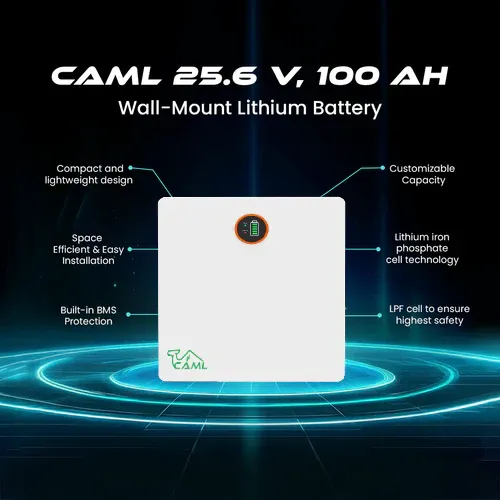

CAML 25.6V 100Ah (2.56kWh) LiFePO4 Wall-Mount Lithium Battery

The CAML 25.6V 100Ah (2.56kWh) LiFePO4 Wall-Mount Lithium Battery is a high-performance residential energy storage solution designed for modern solar systems. Built with premium Lithium Iron Phosphate (LiFePO4) cells, this battery delivers long cycle life (6000+ cycles at 80% DoD), enhanced safety, and reliable power output.

Designed specifically for home solar applications, the CAML 10025 WM is compatible with hybrid, on-grid, and off-grid inverters via CAN and RS-485. Its compact wall-mount design saves space while offering a usable energy capacity of 2.56kWh.

With Smart BMS protection, real-time LED display monitoring, IP54 protection, and high temperature tolerance, this lithium battery ensures efficient, safe, and long-lasting performance for residential solar backup systems.

Key Features

• 2.56 kWh Energy Storage Capacity



• 25.6V, 100Ah LiFePO4 Battery



• 6000+ Cycles @ 80% Depth of Discharge



• Smart BMS with CAN / RS-485 Communication



• Wall-Mount Compact Design



• Compatible with Hybrid, On-Grid & Off-Grid Inverters



• LED Display for Real-Time Monitoring



• IP54 Protection (Indoor Use)



• 90% High Efficiency



• 3-Year Warranty

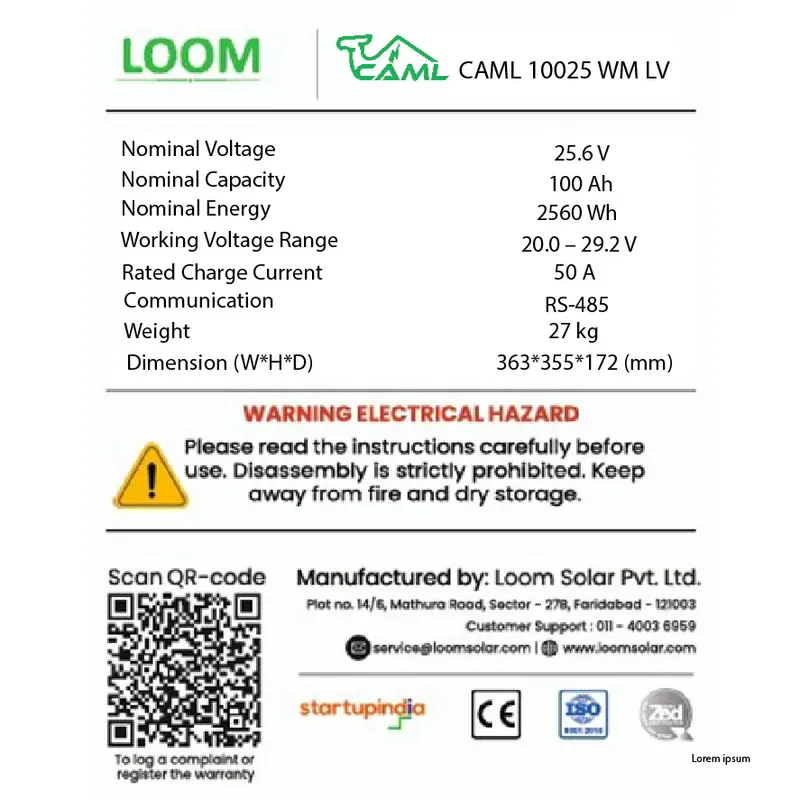

Technical Highlights

• Nominal Voltage: 25.6V



• Rated Capacity: 100Ah



• Nominal Energy: 2560Wh (2.56kWh)



• Max Output Power: 2.4kWh



• Cycle Life: 6000 Times @ 80% DoD



• Charge Temperature: 0°C to 55°C



• Operating Temperature: -20°C to 60°C



• Protection: Overcharge, Over-Discharge, Short Circuit



• Communication: CAN / RS-485



• Weight: ~27kg



• Installation: Wall-Mount / Floor



Contact Narayana Solar today for the best price and expert guidance.
