CAML 100Ah 204.8V 20kWh High-Voltage LiFePO4 Lithium Battery

The CAML 100Ah 204.8V 20kWh High-Voltage Lithium Battery from Loom Solar is a powerful and scalable energy storage system designed for high-demand residential, commercial, and industrial applications. Built with advanced Lithium Iron Phosphate (LiFePO4) technology and a high-voltage Smart Battery Management System (BMS), this battery ensures superior safety, reliability, and long-term performance.

With up to 6000 charge cycles at 80% Depth of Discharge (DoD), this battery system offers a lifespan of 15–20+ years, making it an ideal solution for restaurants, hotels, hospitals, offices, and large homes that require continuous and stable power backup.

The modular stackable design allows easy system expansion by connecting multiple battery modules in series. A 4-module configuration delivers approximately 20.48kWh capacity, and the system can be expanded up to 10 modules (51.2kWh), depending on energy requirements.

It supports fast charging (2–3 hours), offers 98% efficiency, and is compatible with leading hybrid inverter brands such as Growatt, GoodWe, Deye, Luxpower, and Voltronics. Lightweight and compact, this lithium battery weighs nearly one-quarter of traditional SMF and Lead-Acid batteries while delivering significantly higher performance and durability.

Key Features

• 20kWh High-Voltage Energy Storage System



• 204.8V Nominal System (4 Module Configuration)



• 6000+ Charge Cycles @ 80% DoD



• Advanced High-Voltage Smart BMS



• Fast Charging in 2–3 Hours



• Scalable Modular Design (3–10 Modules)



• CAN / RS-485 Communication Interface



• 98% High Efficiency



• Lightweight & Space-Saving Stackable Structure



• 5-Year Warranty



Scalable System Configurations

This flexible configuration makes it suitable for growing energy needs in commercial and industrial projects.

Performance & Safety Advantages

Advanced Smart BMS

Continuously monitors voltage, current, and temperature to ensure safe, balanced, and optimized battery operation.

Modular & Expandable

Supports easy expansion by stacking additional modules to increase total system capacity.

High Efficiency & Longevity

Provides 6000+ cycles with minimal degradation, ensuring stable performance for decades.

Easy Installation

Compact, stackable design reduces installation time and simplifies setup.

Applications

• Hotels & Restaurants



• Hospitals & Healthcare Facilities



• Commercial Buildings



• Industrial Solar Projects



• Large Residential Homes



• Hybrid & Off-Grid Solar Systems



Shipping Details

High Voltage Box Weight: 16 kg
Battery Box Weight: 48.5 kg

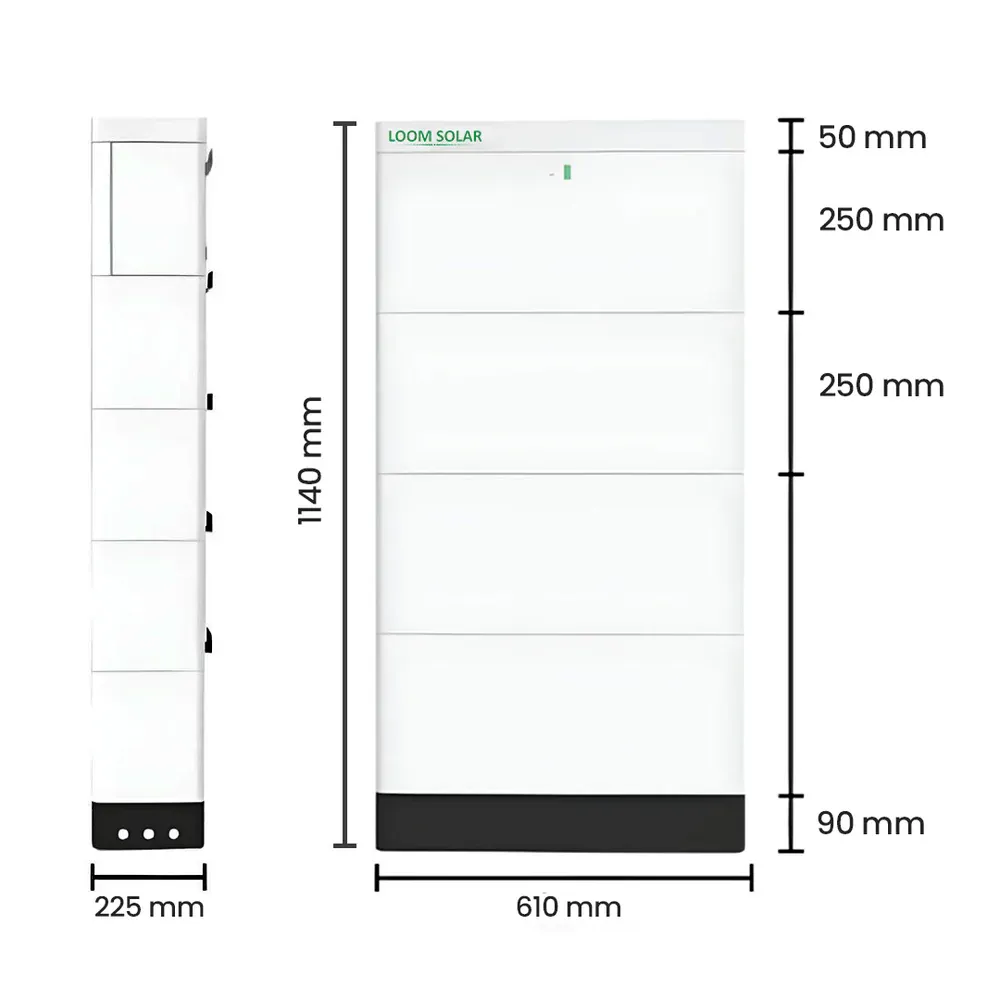

Dimensions (mm):
High Voltage Box: 610 × 225 × 250
Battery Box: 610 × 225 × 250
